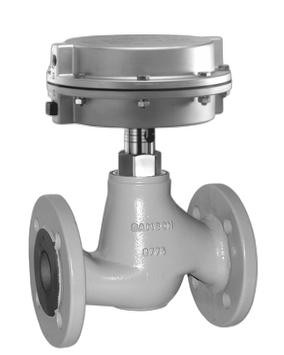

Type 3222 Globe Valve
Typ 3222
Materialnumber
1107529
Free of paint adhesion INHI
Not required
Body connection type
G male thread, DIN EN ISO 228
Flow direction
FTO
Plug material
1.4305
Max. perm. dp
20 bar
Valve size
DN 25
Pressure rating
PN 25
Body gasket material
O-ring EPDM
Plug facing
EPDM soft seal
Seat facing
Metallic
Leakage class
I
Valve coefficient Kvs
8
Seat material
1.4305
Travel
6 mm
Body material
CC499K
Max. perm. medium temperature
150 °C
Plug balancing version
Piston
Cleaning
Without special instructions
9004 Document
Without
Valve coefficient Cv
9.4
