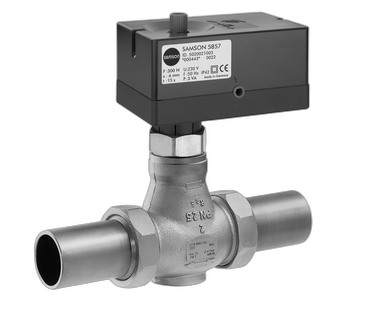

Type 3222 Globe Valve
Typ 3222
Materialnumber
1108258
Valve size
DN 15
Free of paint adhesion INHI
Not required
Body connection type
G male thread, DIN EN ISO 228
Flow direction
FTO
Plug material
1.4305
Max. perm. dp
20 bar
Pressure rating
PN 25
Body gasket material
O-ring EPDM
Valve coefficient Kvs
1.6
Seat facing
Metallic
Leakage class
I
Seat material
1.4305
Travel
6 mm
Body material
CC499K
Valve coefficient Cv
2
Max. perm. medium temperature
150 °C
Plug balancing version
without
Cleaning
Without special instructions
9004 Document
Without
Plug facing
Metal
